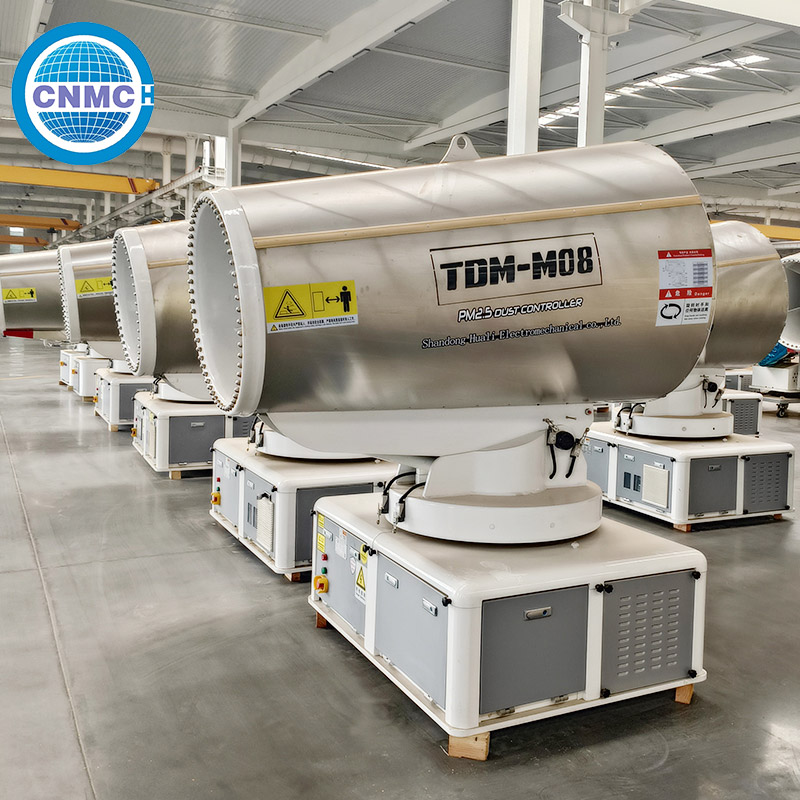

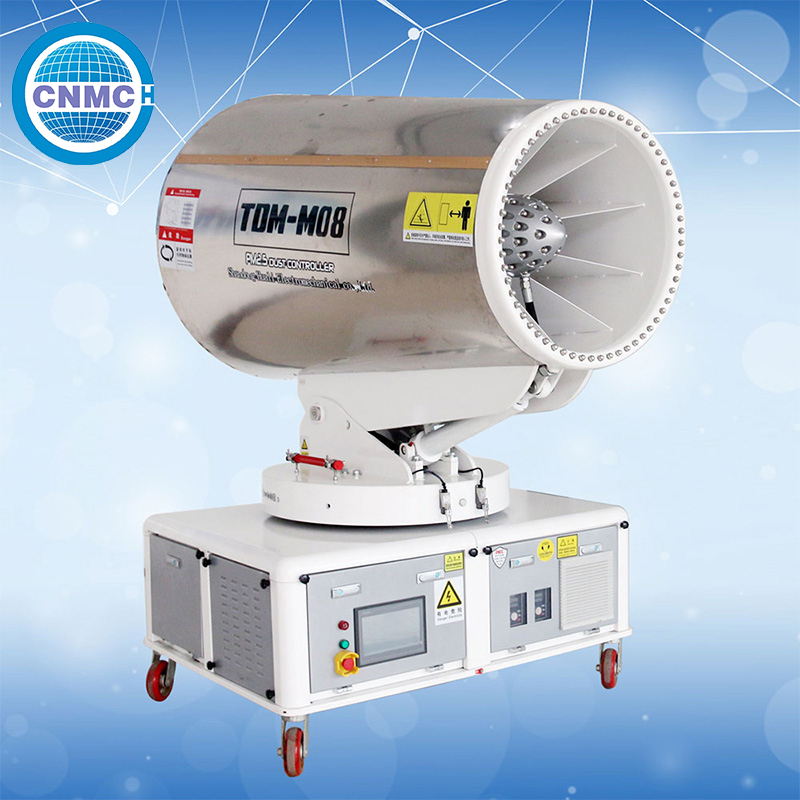

M08 Fog Cannon Machine

Key Advantages & Technical Details

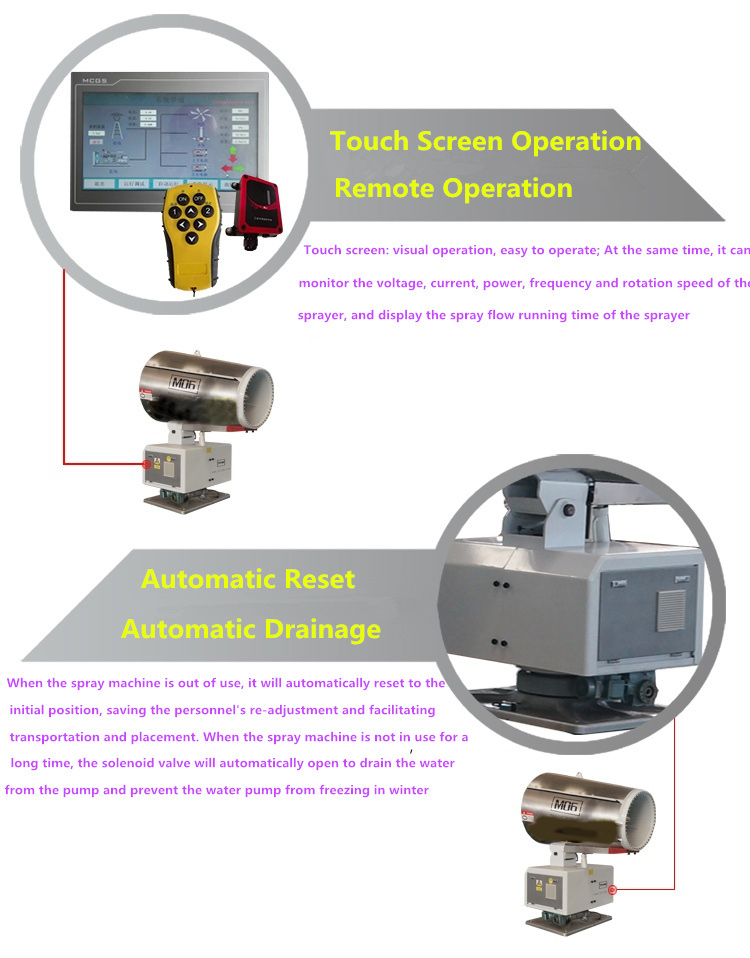

1. Smart, Visual Control Interface

The intuitive Touch Screen Control Panel simplifies complex operations. Beyond easy start/stop and directional adjustments, it provides real-time monitoring of vital parameters: voltage, current, power, frequency, fan speed, and total operational hours. This transforms equipment management from guesswork into data-driven decision-making. Combined with Remote Control capability, it allows for safe and convenient operation from a distance—ideal for large yards or hazardous areas.

2. Automated Reset & Drainage for Hassle-Free Maintenance

Two automated features drastically improve equipment lifespan and redeployment efficiency.

Automatic Reset: After operation, the cannon automatically returns to its locked transport position, eliminating manual adjustment and facilitating quick relocation.

Automatic Drainage: When idle for extended periods, a solenoid valve automatically opens to drain all water from the pump and lines. This critical function prevents pump and pipe freeze damage in winter, removing the need for manual draining.

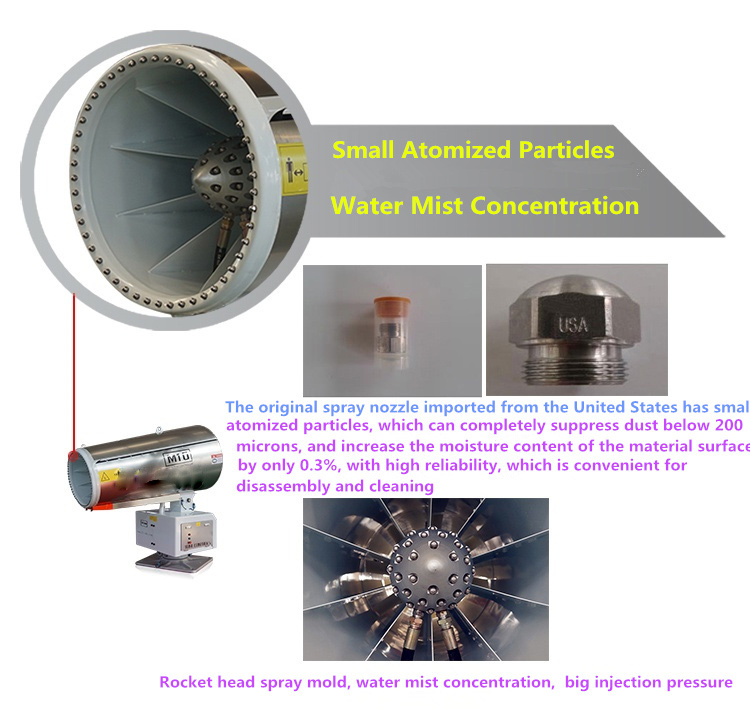

3. High-Efficiency Atomization for Targeted Suppression

The core of its performance lies in atomization technology. Using genuine US-imported nozzles, the M08 produces ultra-fine mist particles capable of effectively capturing and settling dust below 200 microns. Its key benefit: achieving optimal dust suppression while increasing material surface moisture by only about 0.3%, minimizing impact on material quality and preventing clumping. Nozzles are highly reliable and designed for easy disassembly and cleaning.

4. Strong, Quiet, and Stable Air Delivery

The fan system is crucial for range and coverage. The M08 features a one-piece fan blade and housing made from imported Danish nylon, manufactured via single-step injection molding. This ensures exceptional material uniformity and dynamic balance. Compared to ordinary metal fans, it operates with significantly lower noise and vibration, resists fatigue deformation, and delivers reliable performance under sustained heavy-duty use.

5. Concentrated Spray for Extended Range

A unique rocket-head spray mold design concentrates the mist into a dense, high-pressure stream. This, combined with a high-pressure pump, creates a long-reaching spray plume that extends the unit's effective coverage radius.

Typical Applications

Dust control at construction and demolition sites

Material handling areas: coal yards, mines, stockpiles

Dust suppression during loading/unloading at ports and terminals

Municipal dust control and urban cooling

Large-scale agricultural and forestry spraying
